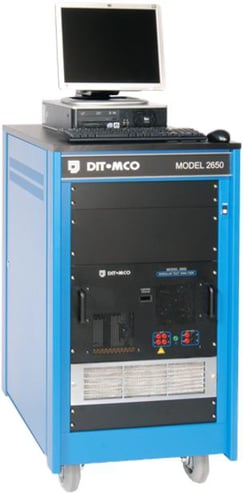

Depicted above is a rack-mounted 2650 Modular Test Analyzer with a Host PC. This model may also be in a benchtop configuration.
- The 2650 series is a distributed bus system. In a distributed system, one or more suitcases can be placed around a product or stacked in one location, helping reduce adapter cable lengths.
- One daisy chain cable connects the suitcases and contains power and all the control signals, so AC input power is only required for the controller.
- There are two types of controllers: a portable unit that can control 15,000 points of switching and a two-port unit that can control up to 30,000 points of switching.
- Four models available:
- MTA (Modular Test Analyzer)
- MBA (Multi-Bus Architecture) – 2 or 4 bus options
- HVA (High Voltage Analyzer)
- EE/LM Module
Source: NETS User Manual, Revision D, document 132-06035-0006, section 10.1.2.
