This switching series is used in 2650 and 2635 models.

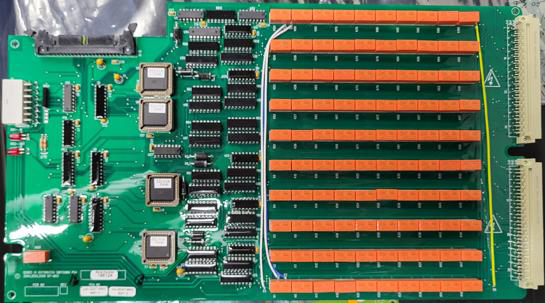

Depicted above is a standard 2650 switching card found in 2650 switching modules.
- 100 points per board
- DIN 41612 Connector
- Miniature Relay
- Series 10 Non-Latching

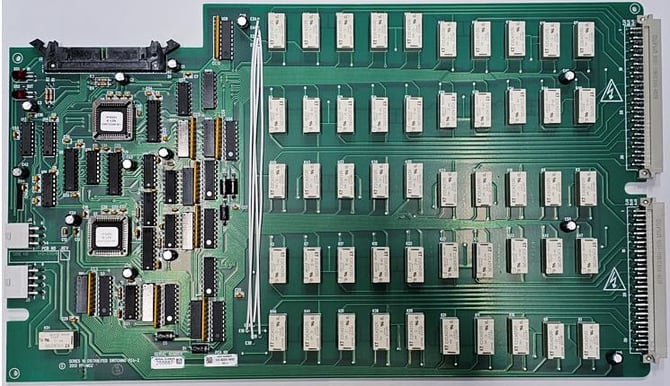

Depicted above is a high-voltage switching card for 2650 systems.
- Some 2650 systems can generate up to 2,000 VDC and 1,500 VAC.
- An HV 2650 controller must be installed to connect the HV switching module(s).
- Can be used alongside standard switching modules.

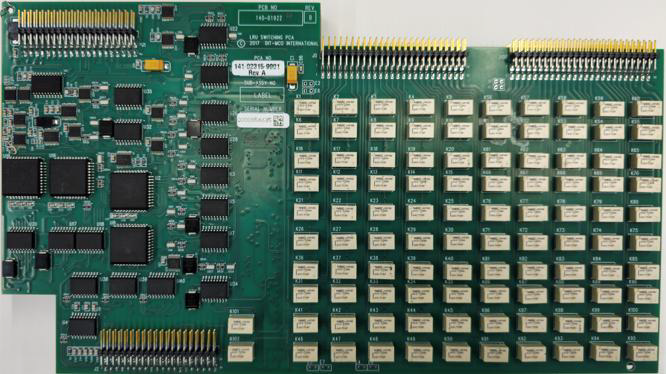

The miniature Series 10 switching card depicted above is used in 2635s and 2650 systems with Line- Replaceable Unit (LRU) modules.
- Some 2635 systems use the same board as 2650 systems. Newer systems use miniature boards.
- 100 points per board.
- Series 10 Non-Latching.

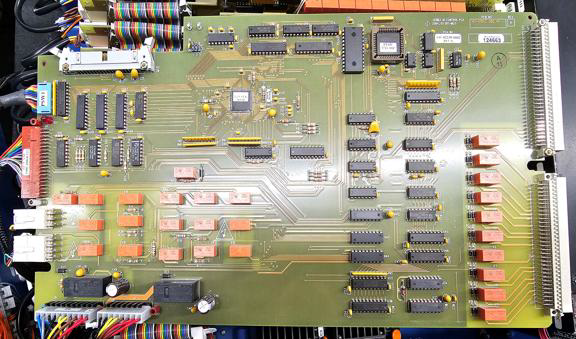

Depicted above is a Latching Matrix card.
- Present in all 2650 switching modules.
- Translates addressing instructions from the control module.
- Has 10 points of integrated EE/LM.
- Returns control signals to the control module to verify that the switching module is powered on properly.
- Relays control signals to subsequent switching modules.
Source: NETS User Manual, Revision D, document 132-06035-0006, section 10.3.2.
