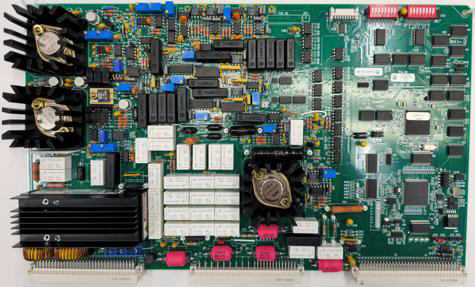

Depicted above is the Standard Measurement Unit board present in all systems.
- The SMU is always in the #1 slot.
- Contains the stimulus supplies for HV DC, LV DC, and Constant Current.
- Contains firmware for decoding test instructions.
- Performs all measurement operations.
Source: NETS User Manual, Revision D, document 132-06035-0006, section 10.2.1.
