Dual-50™ Connector
Legacy Support

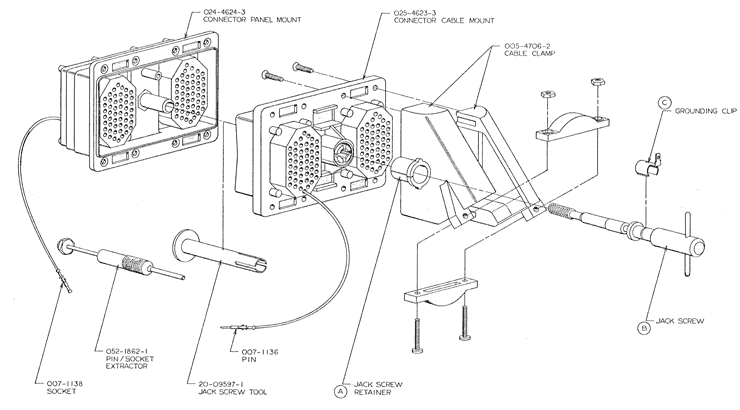

The DIT-MCO Dual-50 connector was adopted as the standard interface in early generations of DIT-MCO test systems. While it is not frequently used in new systems, it is available to provide compatibility with existing test systems and adapters. There are 50 contacts on each side of the connector. A screw jack is used to mate the connector.
Mating Connectors
| 025-04623-0003 | 100 Contact Plug |
| 007-01157-0004 | Pins for 26 – 30 AWG (quantity 100) |
| 007-01157-0005 | Pins for 20 – 24 AWG (quantity 100) |
| 007-01157-0006 | Pins for 16 – 18 AWG (quantity 100) |
| 005-04706-0002 | Cable clamp (two required) |
Specifications
| A | 024-04624-0003 | Contact Receptacle | M | 007-01157-0005 | Pin 20-24 AWG |
| B | 024-04624-0030 | Frame Assembly | M | 007-01157-0006 | Pin 16-18 AWG |
| C | 024-04624-0031 | Jack Screw Socket | N | 007-01158-0004 | Socket 26-30 AWG |
| D | 024-04624-0032 | “C” Ring | N | 007-01158-0005 | Socket 20-24 AWG |
| E | 025-04623-0003 | Connector Plug | N | 007-01158-0006 | Socket 16-18 AWG |
| F | 025-04623-0030 | Plug Frame | O | 052-01862-0001 | Pin/Socket Extractor |
| G | 025-04623-0031 | Ground Clip | P | 020-09597-0001 | Jack Screw Tool |
| H | 025-04623-0032 | Jack Screw | |||
| I | 025-04623-0033 | Connector Shell Guard | Also Available: | ||
| J | 025-04623-0034 | Plug Insert | 052-01851-0001 | Crimping Tool | |
| K | 025-04623-0035 | Retaining Bushing | 510064-DC1 | Dust Cover-100 Contact Receptacle | |
| L | 005-04706-0002 | Cable Clamp (2 required) | 510064-DC2 | Dust Cover-100 Contact Plug | |
| M | 007-01157-0005 | Pin 26-30 AWG | |||
